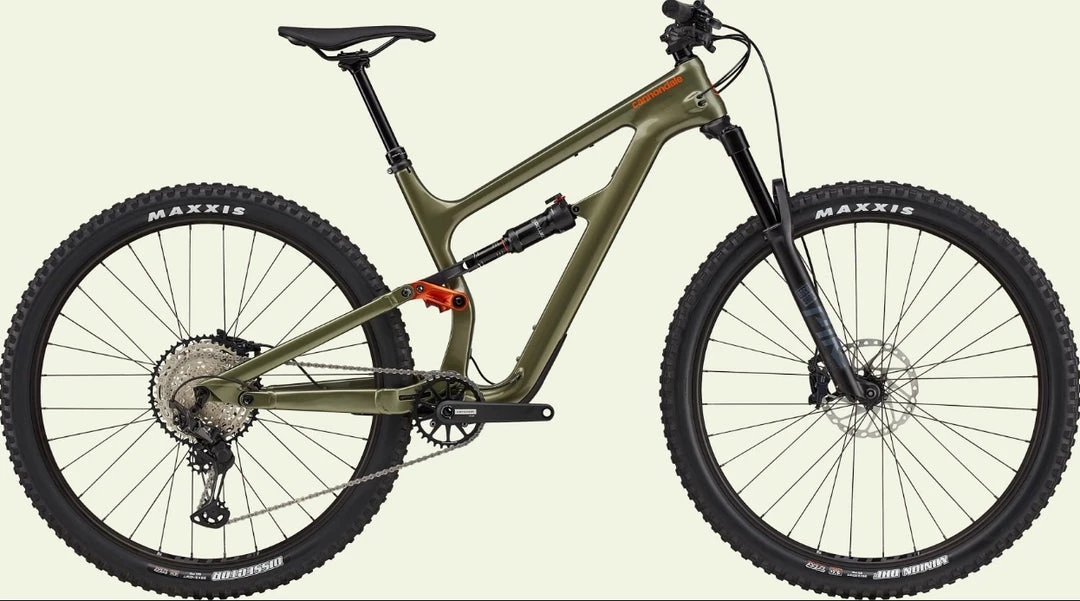

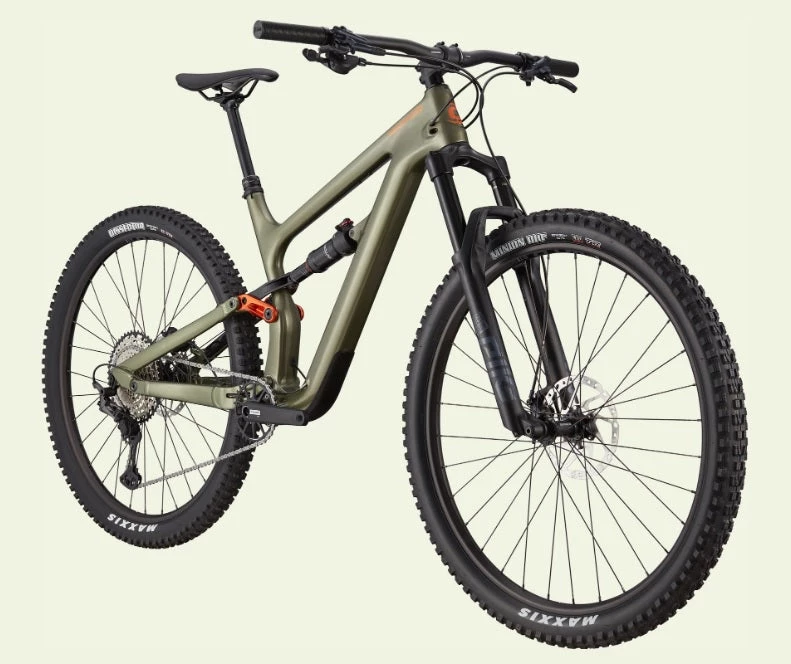

Cannondale Habit Carbon 2 Full-Suspension Mountain Bike

• Platform – Habit
• Model Name – Habit Carbon 2
• Model Code – C23301M

FRAMESET

• Frame – 130mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Proportional Response Tuned, Ai offset drivetrain, ISCG05, PF30, Post mount brake, tapered headtube
• Fork – RockShox Pike Select, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 51mm offset
• Headset – Integrated Sealed Bearing, Tapered

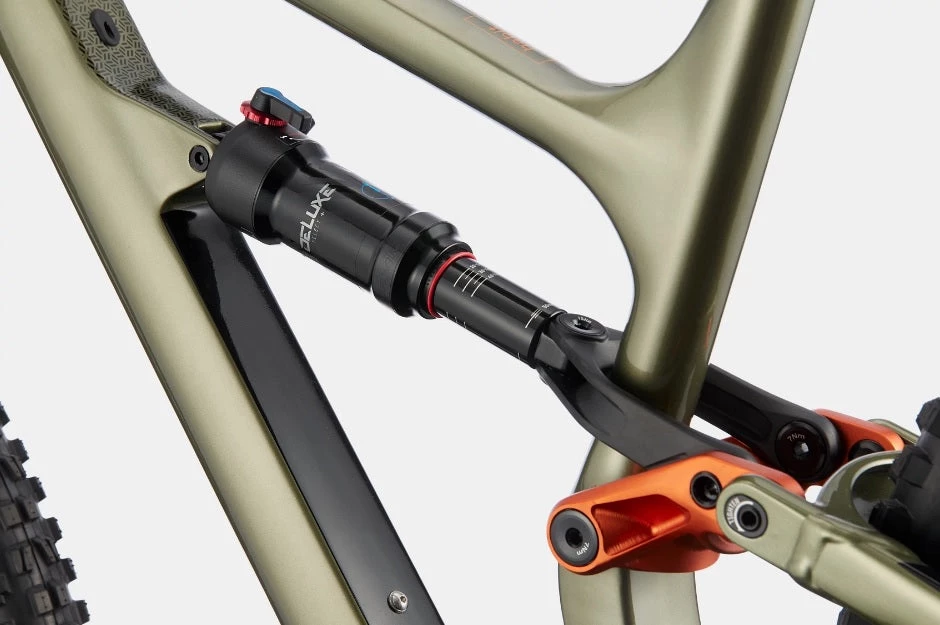

• Rear Shock – RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

DRIVETRAIN

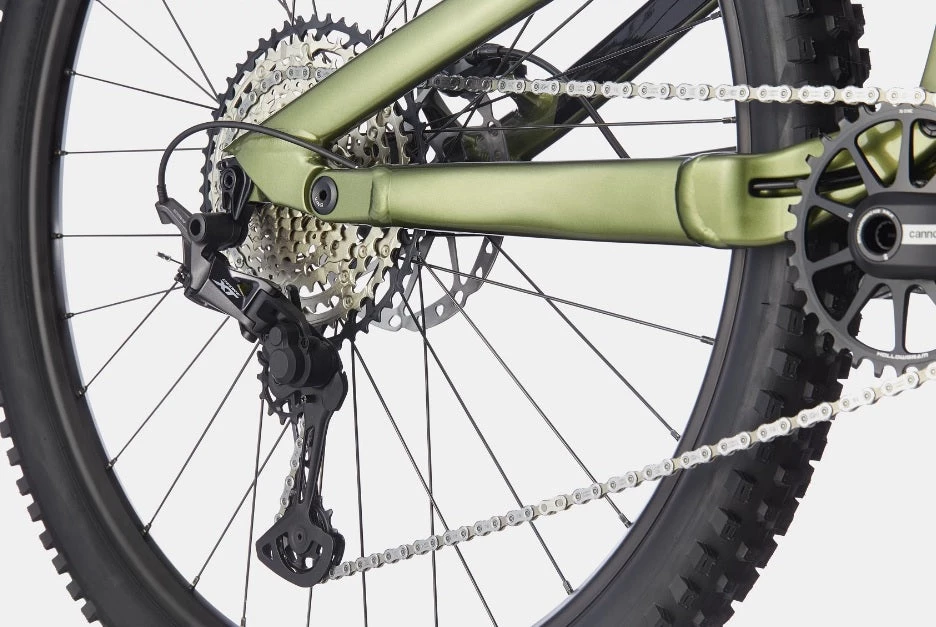

• Rear Derailleur – Shimano XT
• Shifters – Shimano SLX, 12-speed
• Chain – Shimano SLX, 12-speed

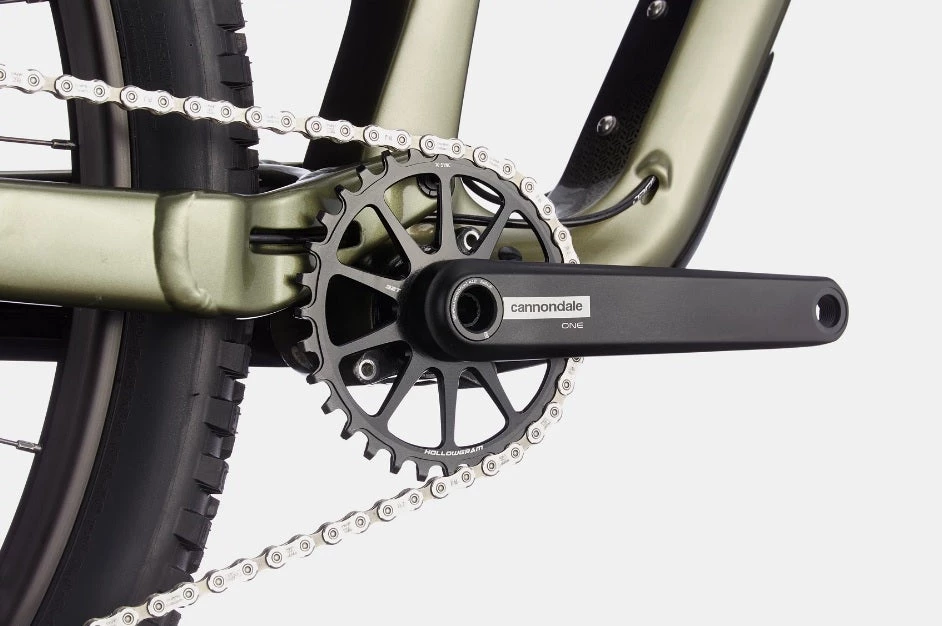

• Crank – HollowGram, BB30a, OPI SpideRing, 32T, Ai offset
• Rear Cogs – Shimano SLX, 10-51, 12-speed
• Bottom Bracket – Cannondale Alloy PressFit30

BRAKES

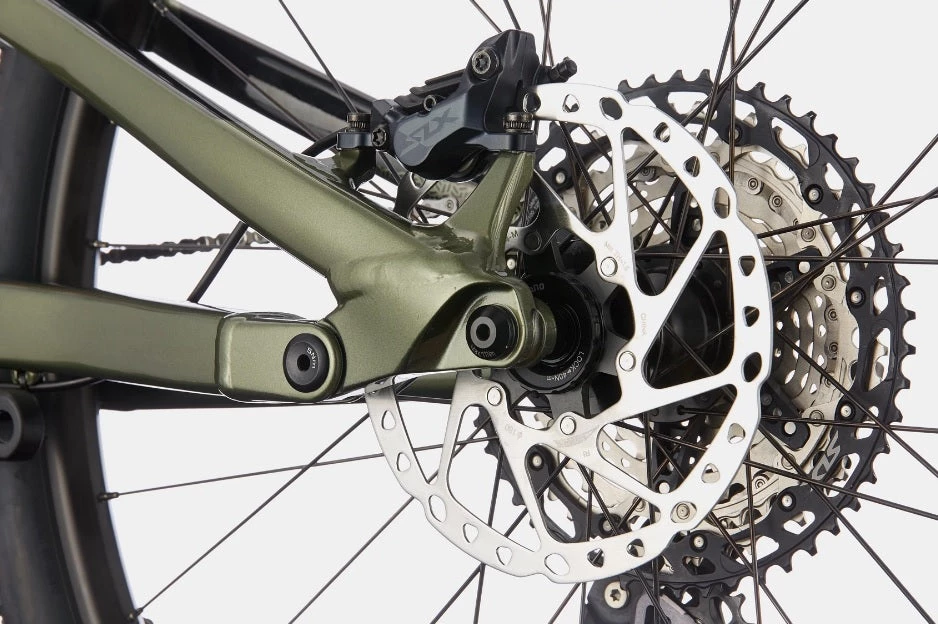

• Brakes – Shimano SLX hydraulic disc, 4-piston, 180/180mm RT64 rotor
• Brake Levers – Shimano SLX hydraulic disc

WHEELS

• Rims – WTB ST i25 TCS, 32h, tubeless ready
• Front Hub – Shimano MT400, 15x110mm thru-axle
• Rear Hub – Shimano MT510 12×148
• Spokes – DT Swiss Champion
• Tires – (F) Maxxis Minion DHF, 29 x 2.5″, EXO casing, tubeless ready (R) Maxxis Dissector, 29 x 2.4″, EXO casing, tubeless ready
• Tire Size – 2.5
• Wheel Size – 29

COMPONENTS

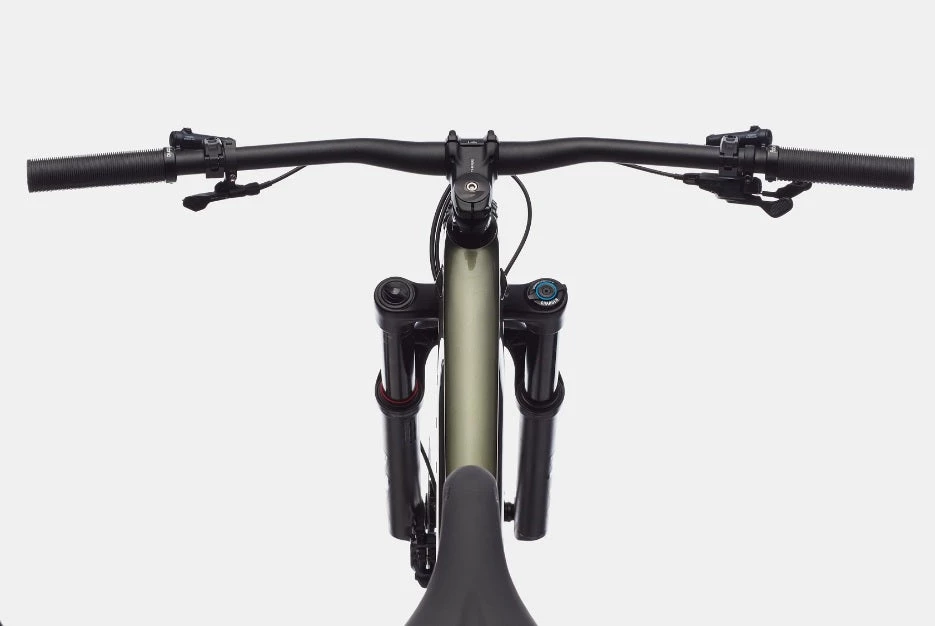

• Handlebar – Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Stem – Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips – Fabric FunGuy
• Saddle – Fabric Scoop Shallow Sport, steel rails
• Seatpost – Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)

*Specifications subject to change without notice

• Mack Cycle highly recommends to have the final assembly (of the handlebars, front wheel, and saddle/seatpost) performed by your local, authorized Cannondale retailer.
• Your local, authorized Cannondale retailer will charge their own assembly fee to complete this assembly.
