Your New Trail Boss.

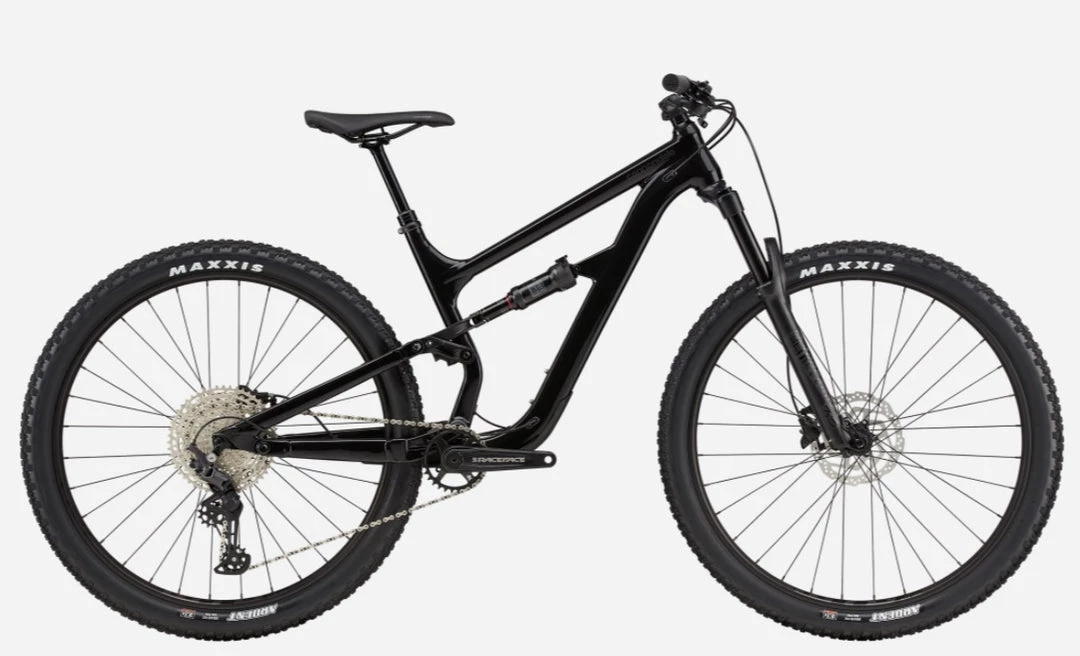

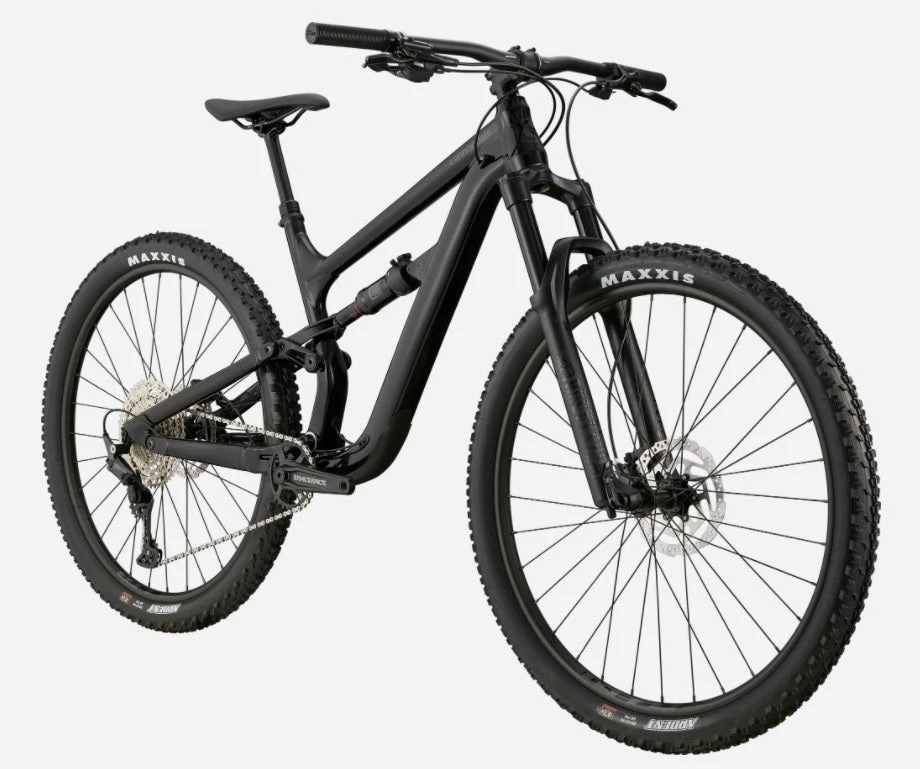

The Cannondale Habit 5 Full-Suspension mountain bike is a trail bike with its priorities on point: playful agility, progressive design, and killer capability – your favorite trails have never been more fun. The Cannondale Habit 5 thrives on challenging trails, up and down hills. The Cannondale Habit 5 mountain bike is built for traction, handling, and durability.
Highlights
- SmartForm C1 Alloy frame / Shimano Deore 11-speed drivetrain
- RockShox 35 Silver R 140mm fork / Deluxe Select shock
- Tektro M275 hydraulic disc / dropper post
Specs
DRIVETRAIN
- Bottom Bracket – Race Face BSA
- Chain – KMC X11, 11-speed
- Crank – RaceFace Ride Cinch, 30T
- Rear Cogs – Shimano Deore M5100, 11-51, 11-speed

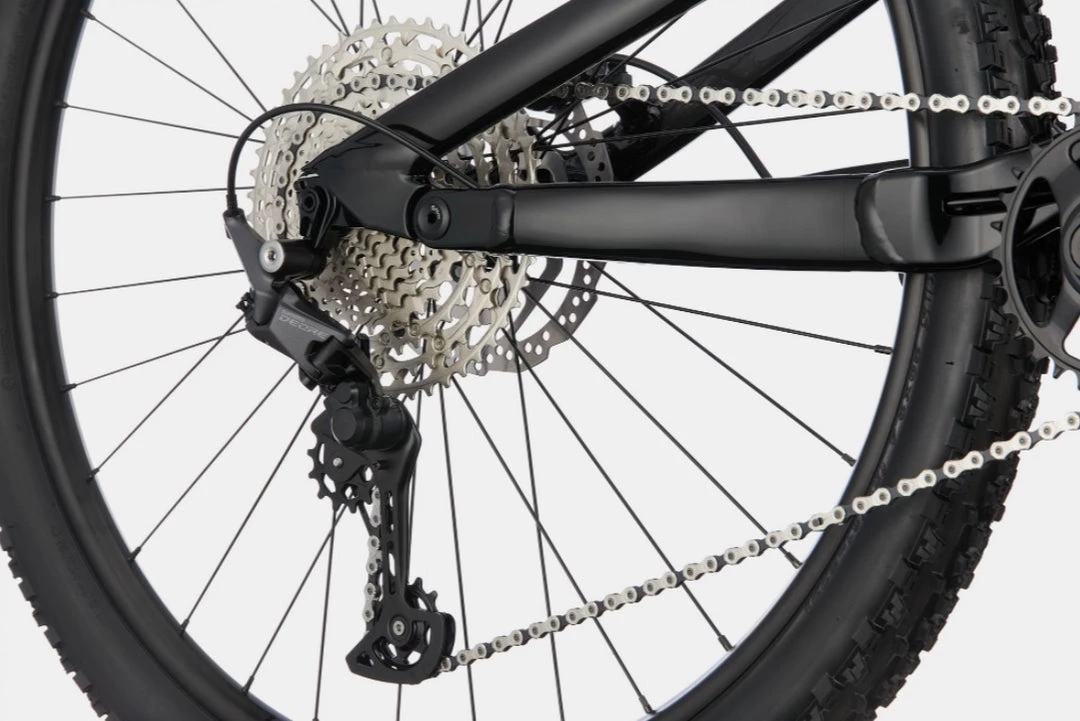

- Rear Derailleur – Shimano Deore M5100
- Shifters – Shimano Deore M5100, 11-speed
FRAMESET
- Fork – RockShox 35 Silver R, 140mm, Coil, 15x110mm thru-axle, tapered steerer, 51mm offset
- Frame – 130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, post mount brake, tapered headtube
- Headset – Integrated, 1-1/8 to 1.5″, sealed angular contact bearings

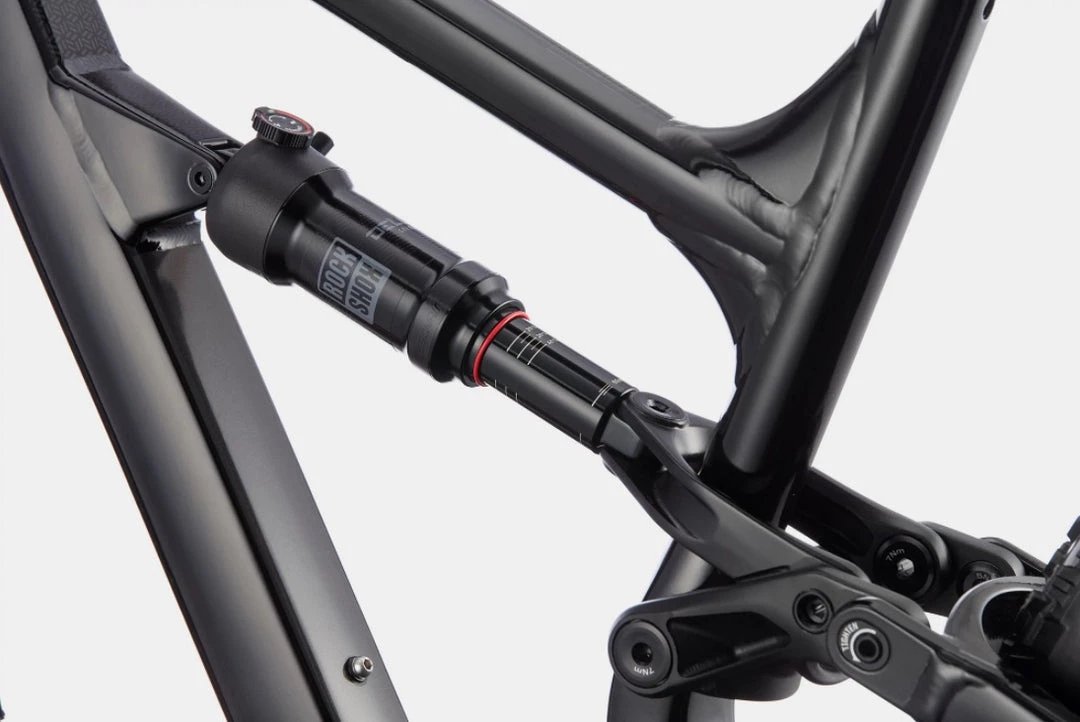

- Rear Shock – RockShox Deluxe Select, DebonAir, adjustable rebound
WHEELS
- Front Hub – Shimano MT400, 15x110mm thru-axle
- Rear Hub – Shimano MT400 12×148
- Rims – WTB STX i23 TCS, 32h, tubeless ready
- Spokes – Stainless Steel, 14g
- Tire Size – 2.4
- Tires – Maxxis Ardent, 29 x 2.4″, EXO casing
- Wheel Size – 29
BRAKES
- Brake Levers – Tektro hydraulic disc
- Brakes – Tektro M275 hydraulic disc, 180/180mm rotors
COMPONENTS
- Grips – Fabric FunGuy
- Handlebar – Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
- Saddle – Cannondale Ergo XC
- Seatpost – TranzX Dropper, 31.6, Internal Routing, 100mm (S), 120mm (M-XL)
- Stem – Cannondale 3, 6061 Alloy, 31.8, 0°
*Specifications subject to change without notice
- Mack Cycle highly recommends to have the final assembly (of the handlebars, front wheel, and saddle/seatpost) performed by your local, authorized Cannondale retailer.
- Your local, authorized Cannondale retailer will charge their own assembly fee to complete this assembly.
